Available to order — 4-6 week lead time
H-110
ZEROPOINT SYSTEM
Overview

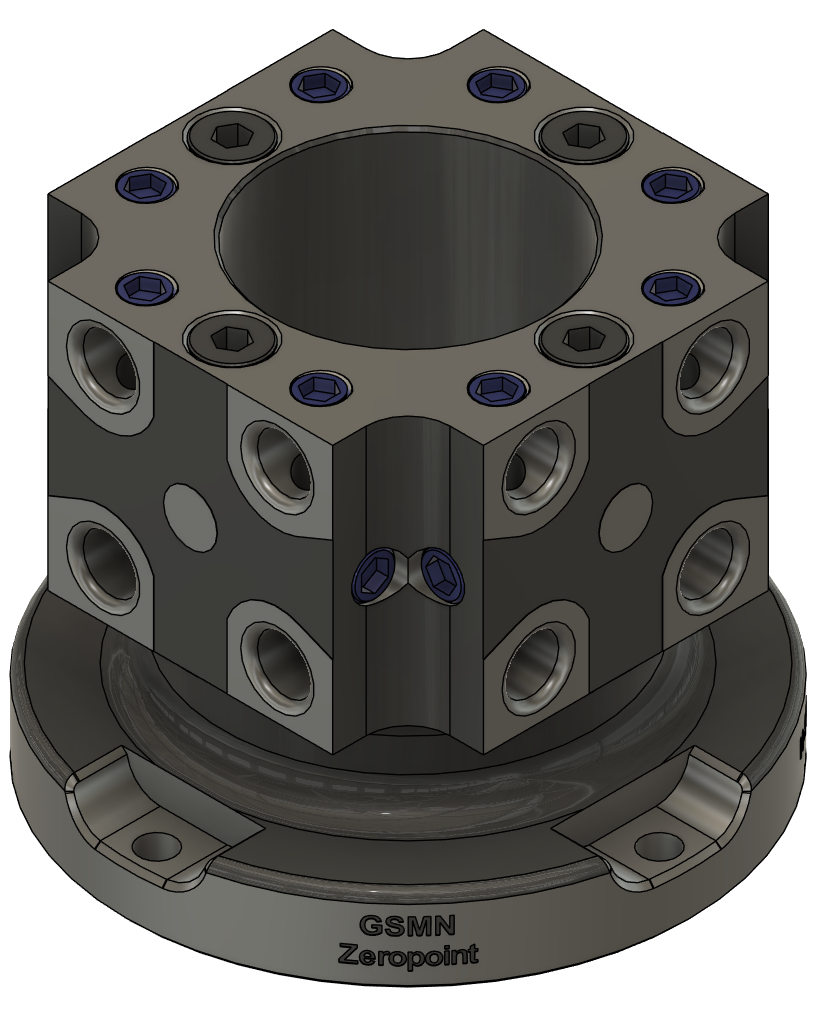

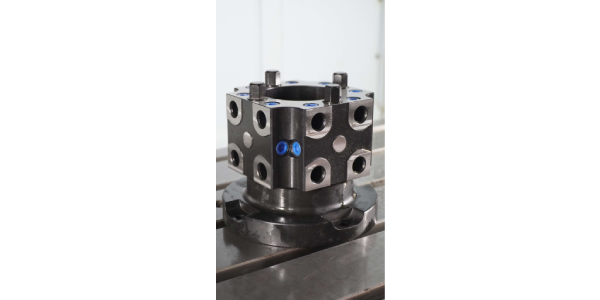

The GSMN ZeroPoint H-110 is a compact zero-point clamping module from the 52 Series Clamping on 4 sides which has 96 series adaptability in the bottom, designed for maximum efficiency in space-constrained applications. Universal adaptability to ZeroPoint self centering vise available in the market. Please check with the vise supplier for further instructions.

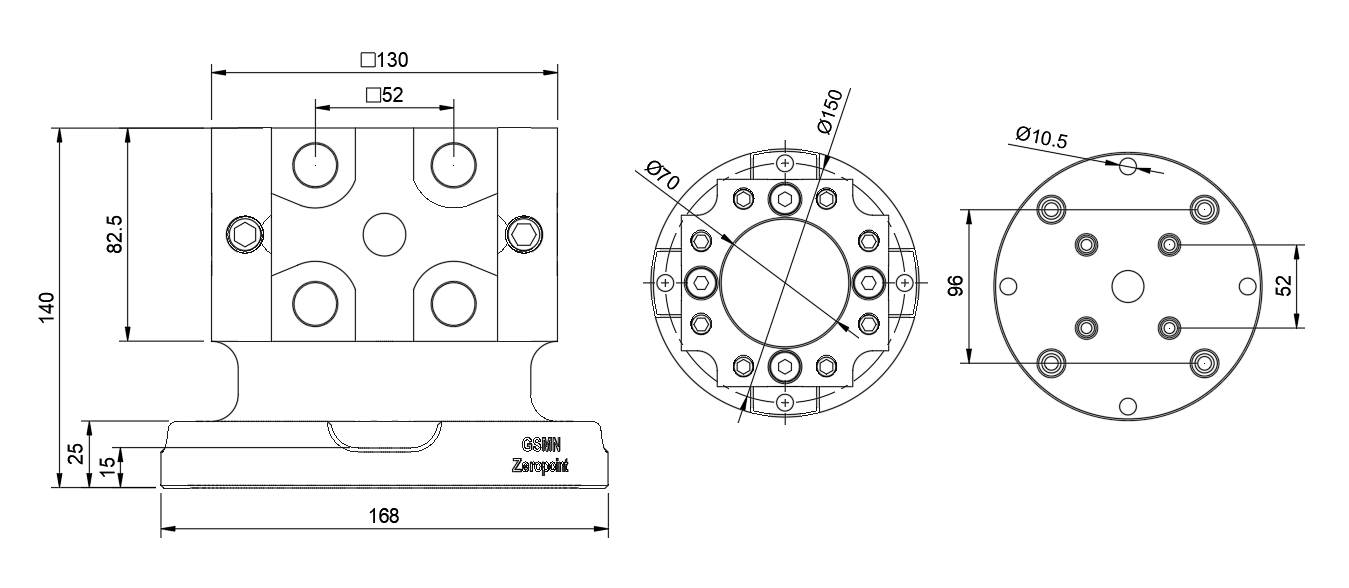

Technical Specifications
| Model | H-110 |
| Series | 52 Series Zero Point |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | VMC and HMC machine |
| Operating Method | Manual mechanical locking on all 4 modules |
| Position Accuracy | Up to ±10 µm |
| Thickness | 140mm |
| Torque Limit | 40 Nm on all four sides |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | VMC 4th axis and Hmc Tombstone |
| Adaptability | 52 Series or 52mm pitch self centering wise |
| Clamping Bolt | M10 Allen bolt |
