Available to order — 4–6 week lead time
S-260
ZEROPOINT SYSTEM
Overview

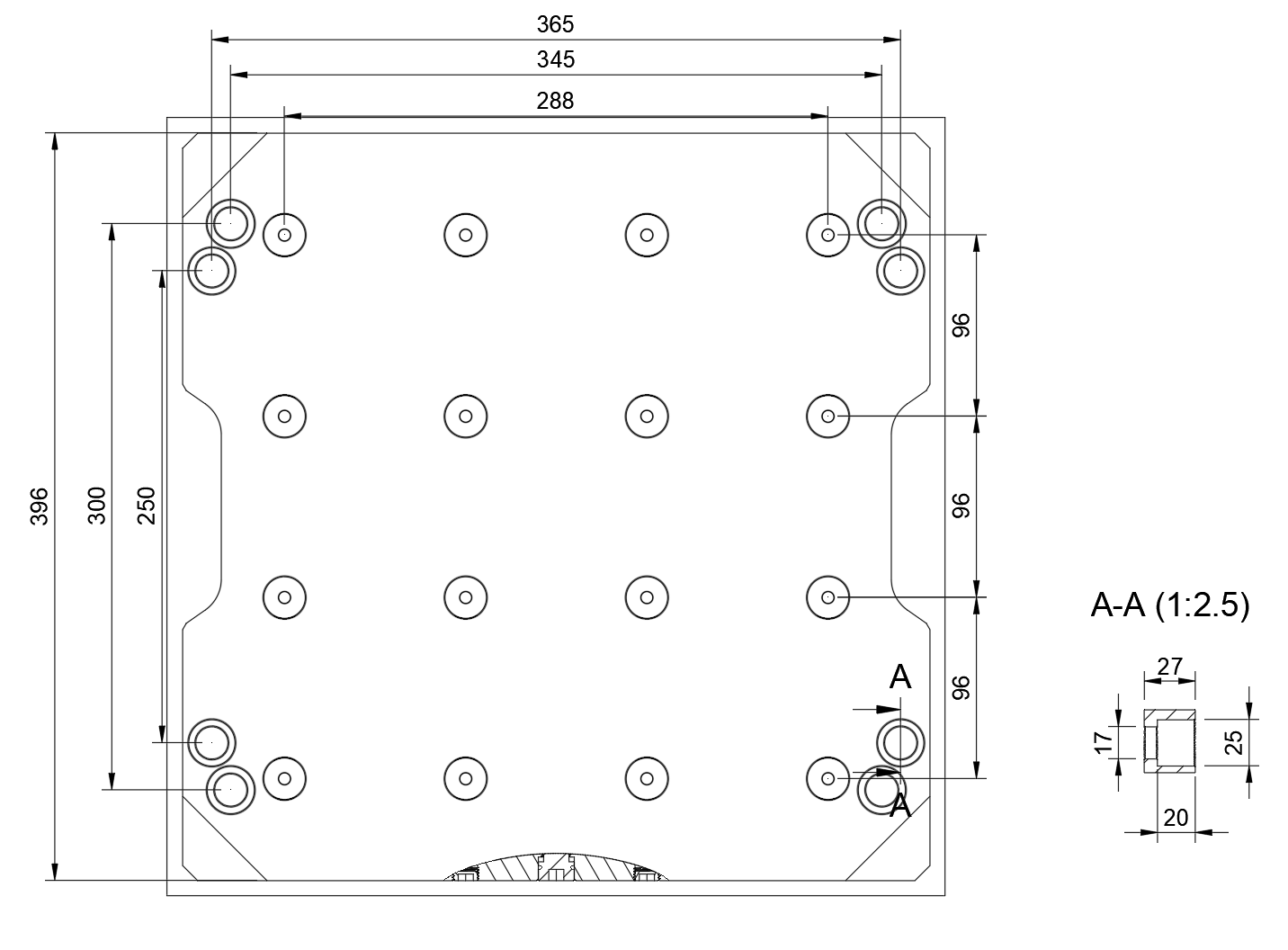

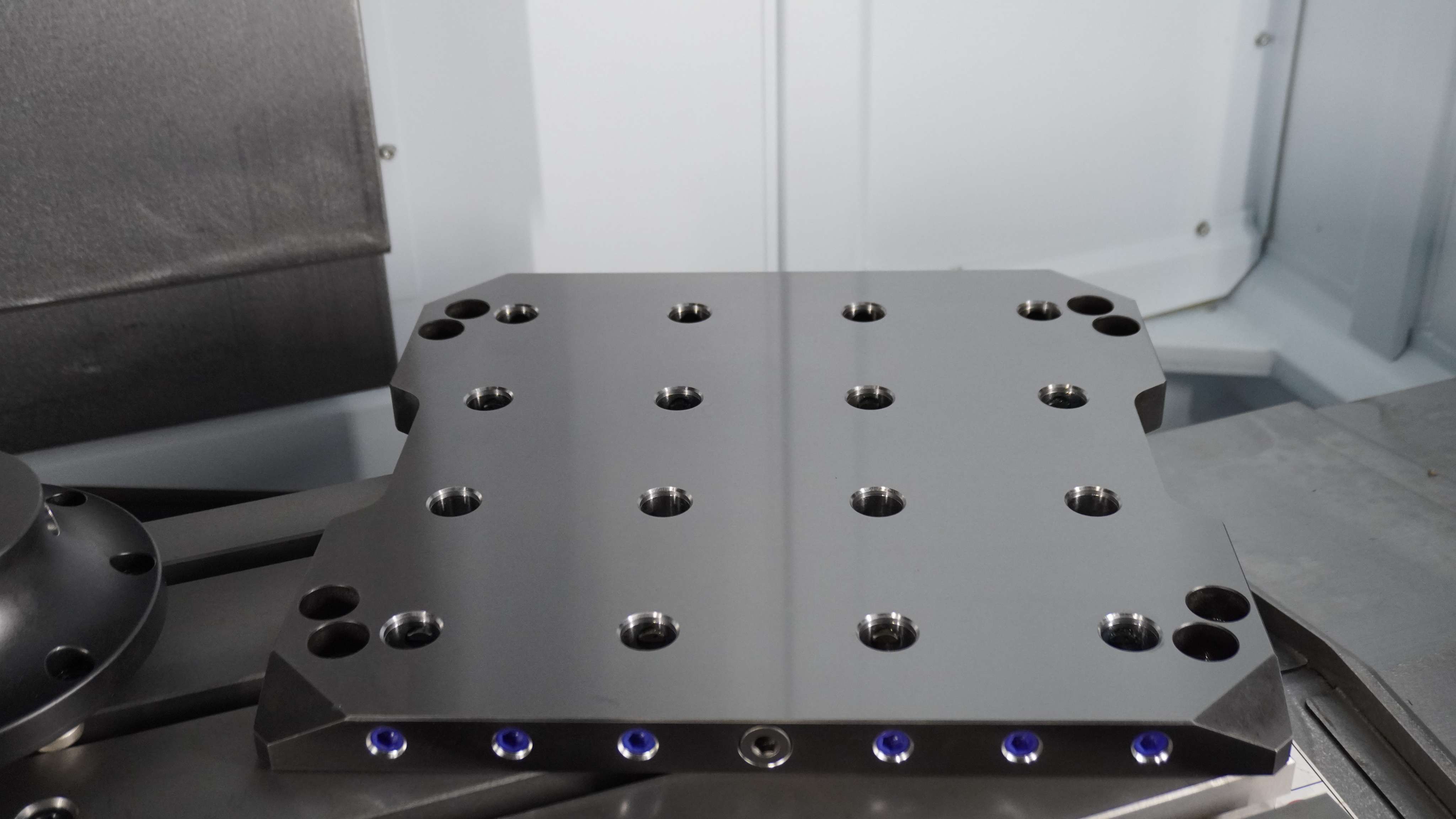

High-capacity zero-point module engineered for heavy industrial machining and high-torque operations in VMC machines and mid level industrial machining for HMC machines. It has 16 Positioning holes that clamps at the same time while mechanism is activated.
Technical Specifications
| Model | S-260 |
| Series | 96 Series Zero Point |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | VMC and HMC machine |
| Operating Method | Manual mechanical locking with torque wrench |
| Position Accuracy | Up to ±10 µm |
| Thickness | 27mm and 32mm |
| Torque Limit | 80 Nm |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | Completely locked into machine bed and fixtures are interchanged |
| Adaptability | 96 Series or 96mm pitch self centering wise |
| Clamping Bolt | M16 Allen bolt |
