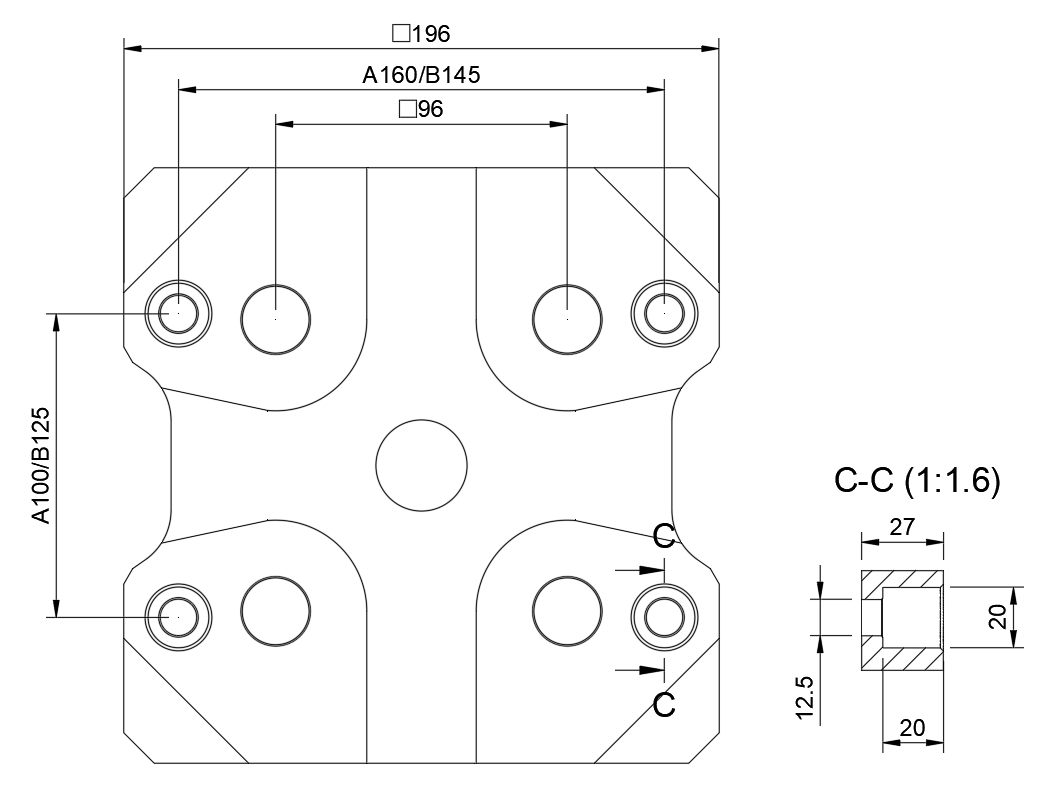

S-250
ZEROPOINT SYSTEM
Overview
The GSMN ZeroPoint S-250 is a compact zero-point clamping module from the 96 Series, designed for maximum efficiency in space-constrained applications. Universal adaptability to ZeroPoint self centering vise available in the market. Please check with the vise supplier for further instructions. The 96 Series delivers exceptional holding power for demanding heavy-duty machining applications.
Technical Specifications
| Model | S-250 |
| Series | 96 Series Zero Point |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | VMC and HMC machine |
| Operating Method | Manual mechanical locking |
| Position Accuracy | Up to ±10 µm |
| Thickness | 27mm |
| Torque Limit | 40 Nm |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | VMC 4th axis and Hmc Tombstone |
| Adaptability | 96 Series or 96mm pitch self centering wise |
| Clamping Bolt | M12 Allen bolt |
