Available to order — 3-4 week lead time
RT-350
ZEROPOINT SYSTEM
Overview

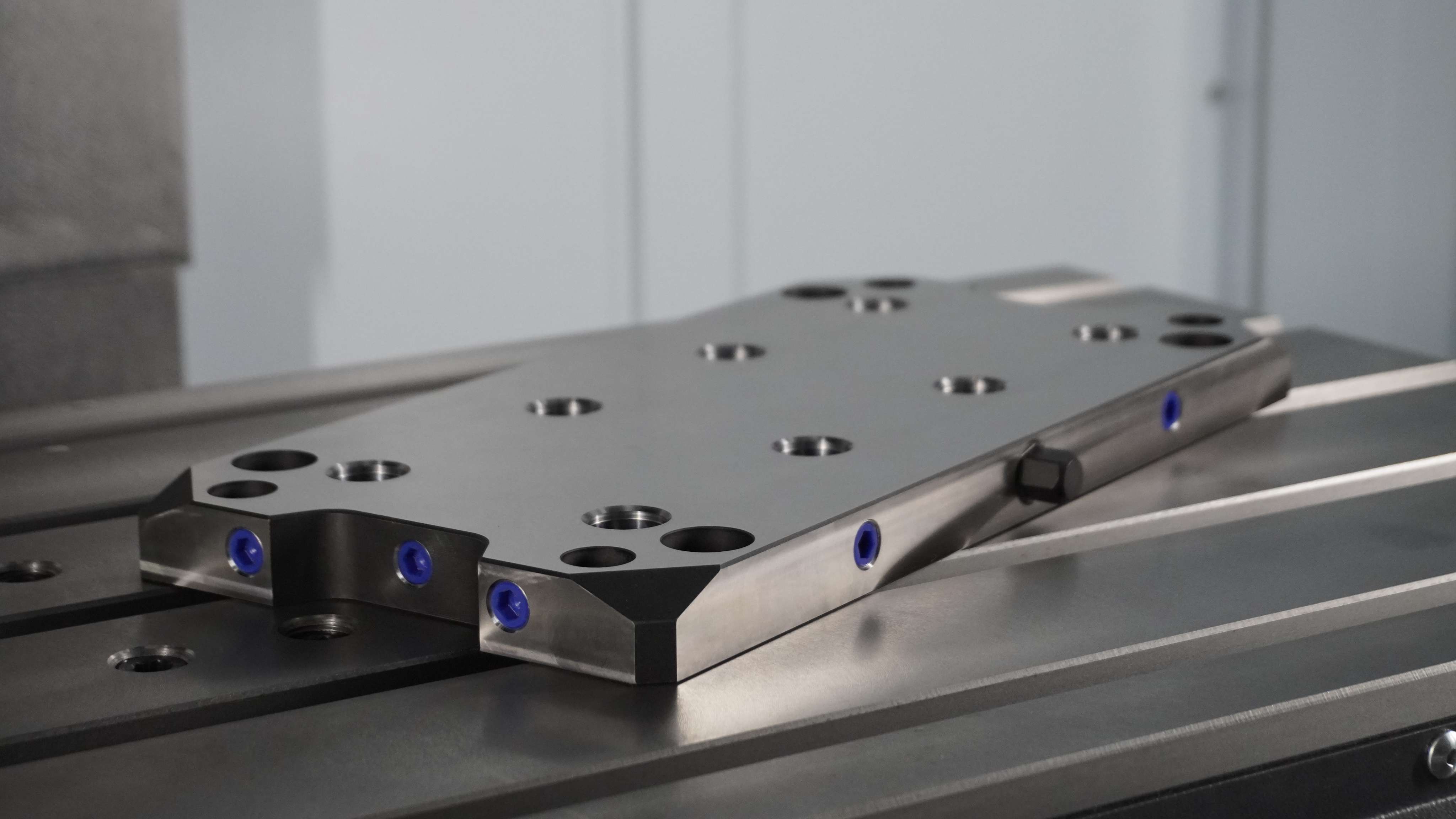

The GSMN ZeroPoint RT-350 is a compact zero-point clamping module from the 96 Series, designed for maximum efficiency in space-constrained applications. Universal adaptability to ZeroPoint self centering vise available in the market. Please check with the vise supplier for further instructions. Reliable zero-point clamping system designed for consistent performance in production environments.
Technical Specifications

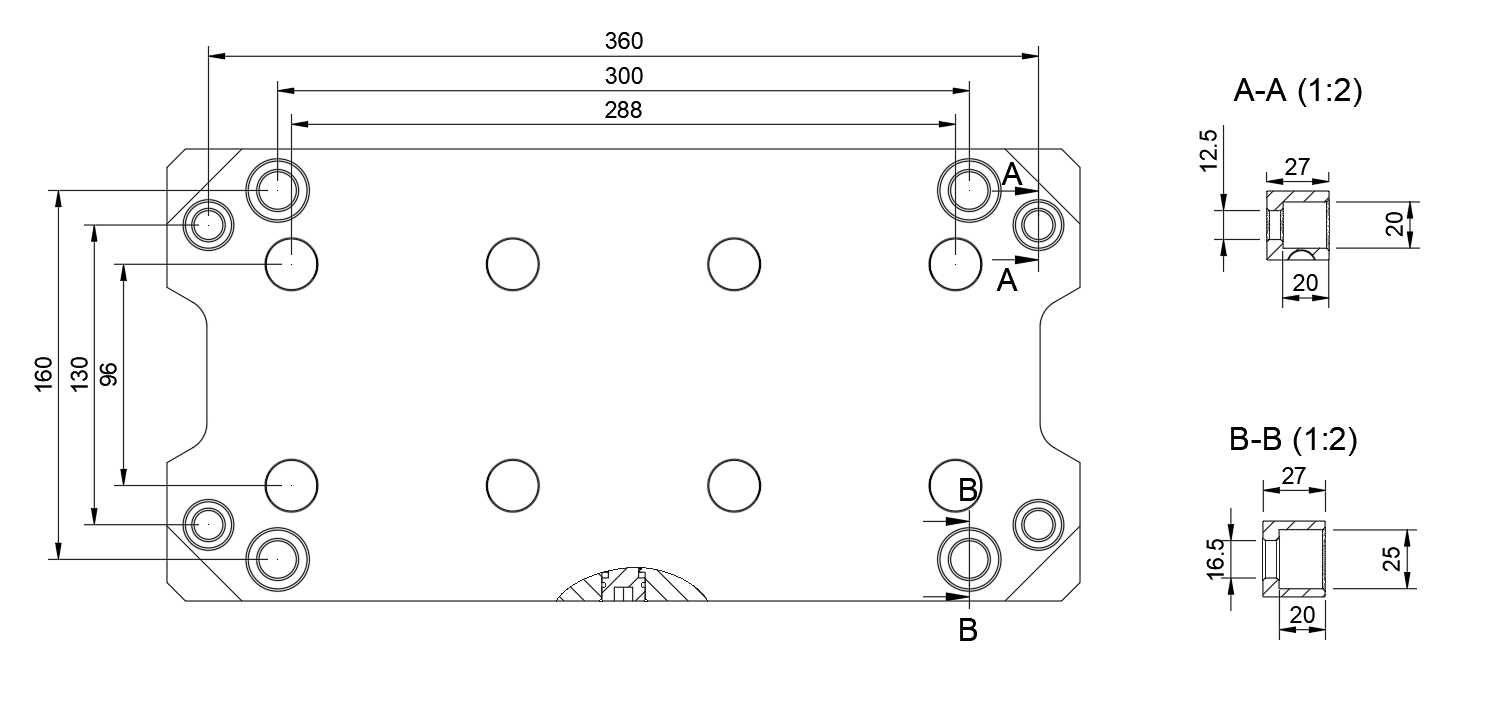

| Model | RT-350 |
| Series | 96 Series Zero Point |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | Low to Medium level VMC and HMC machining |
| Operating Method | Manual mechanical locking |
| Position Accuracy | Up to ±10 µm |
| Thickness | 27mm |
| Torque Limit | 60 Nm |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | VMC 4th axis and Hmc Tombstone |
| Adaptability | 96 Series or 96mm pitch self centering wise |
| Clamping Bolt | M12 and M16 Allen bolt |
