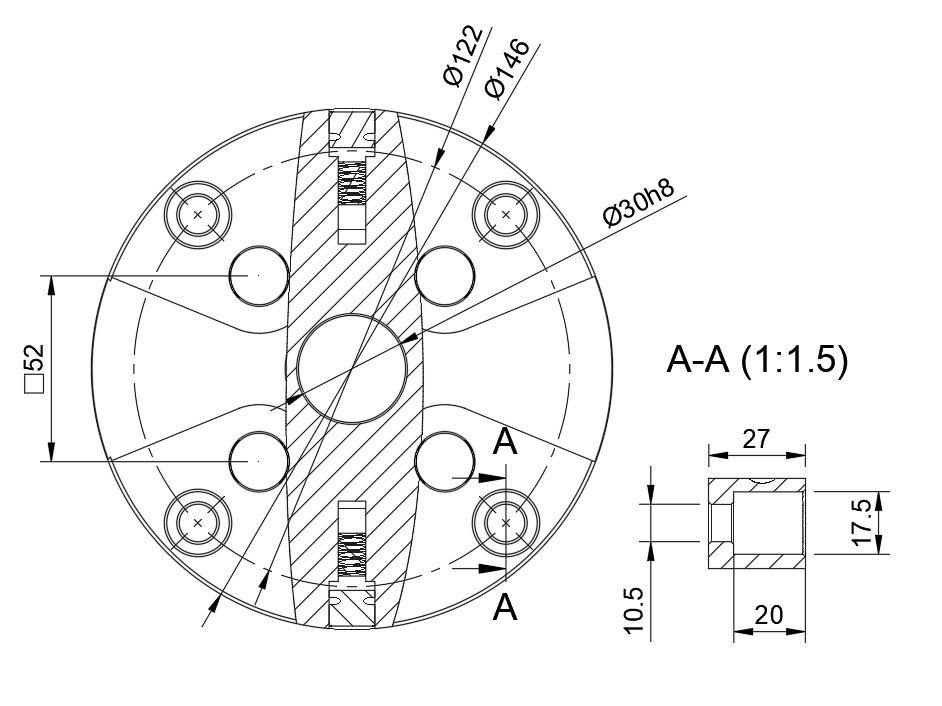

R-102
ZEROPOINT SYSTEM
Overview
The GSMN ZeroPoint R-102 is a compact zero-point clamping module from the 52 Series, designed for maximum efficiency in space-constrained applications. Universal adaptability to ZeroPoint self centering vise available in the market. Please check with the vise supplier for further instructions. Has a 30mm bore in the middle for shaft machining and long and round part clamping.
Technical Specifications
| Model | R-102 |
| Series | 52 Series Zero Point |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | VMC and HMC machine |
| Operating Method | Manual mechanical locking on 2 sides |
| Position Accuracy | Up to ±10 µm |
| Thickness | 27mm |
| Torque Limit | 40 Nm on both sides |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | VMC 4th axis and Hmc Tombstone |
| Adaptability | 52 Series or 52mm pitch self centering vise |
| Clamping Bolt | M10 Allen bolt |
