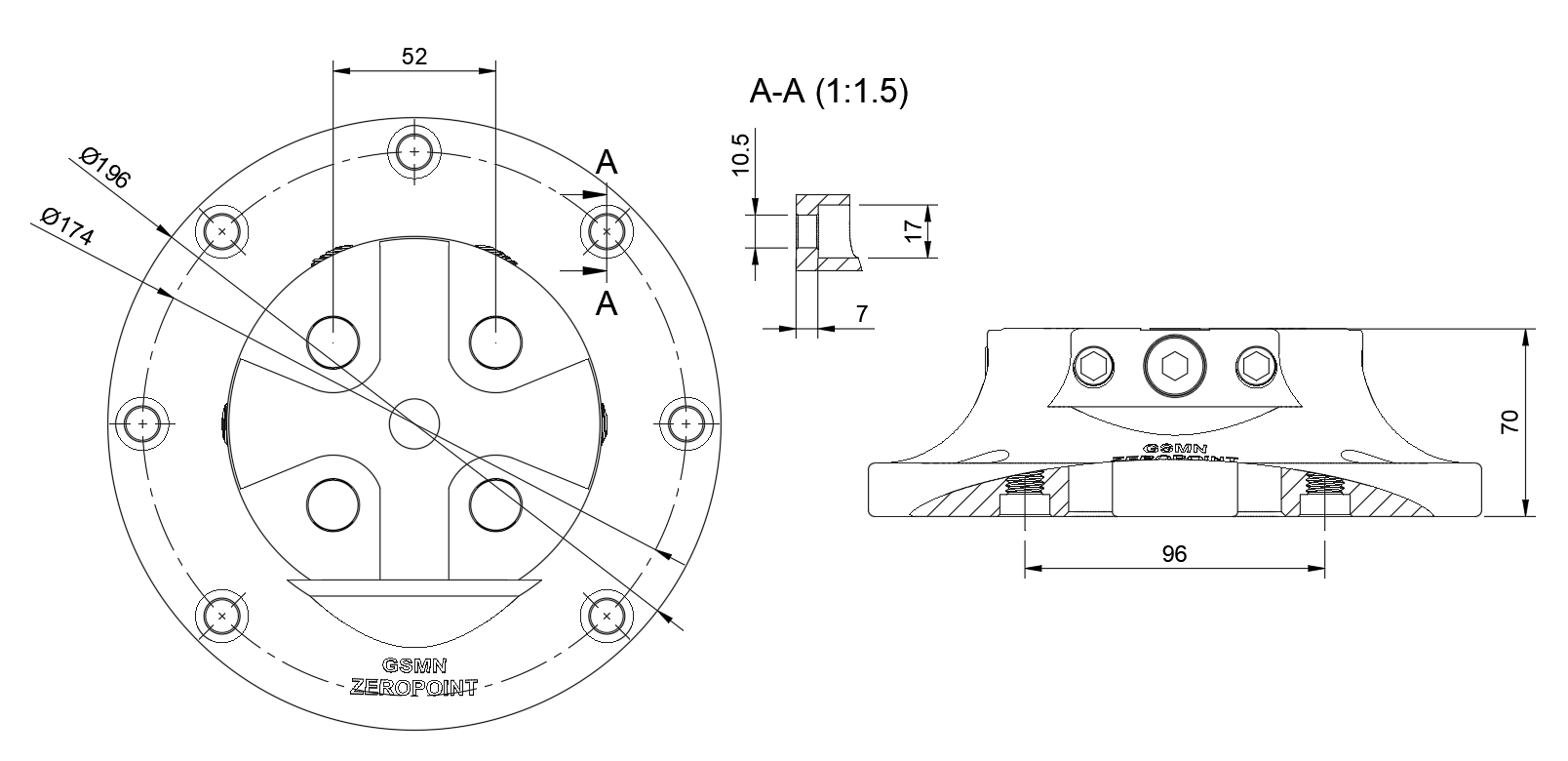

R-110
ZEROPOINT SYSTEM
Overview
R-110 ZeroPoint System is a precision-engineered industrial automation and control solution designed for reliable, accurate, and efficient machine operations. It helps improve positioning accuracy, reduce setup time, and enhance overall production performance. It has 96 series clamping stud in the bottom and 52 series module in the top. It acts as a reducer in most places.
Technical Specifications
| Model | R-110 |
| Series | Reducer Series |
| Clamping Force | Min. 12.5 kN per pull stud |
| Application in | VMC and HMC machine |
| Operating Method | Manual mechanical locking |
| Position Accuracy | Up to ±10 µm |
| Thickness | 27mm |
| Torque Limit | 40 Nm |
| Functions | Precision locating and repeatable workholding |
| Material | Hardened alloy steel |
| Interface | VMC 4th axis and Hmc Tombstone |
| Adaptability | 52 Series or 52mm pitch self centering wise |
| Clamping Bolt | M10 Allen bolt |
